Aug 3, 2020 - Learn how to bend conduit to any configuration desired, not merely the common bends on a conduit bender. Math formulas and multipliers are also covered to help you bend electrical conduit. Electric blankets are available for bending smaller pipe as are hot boxes for conduit or pipe up to 4" in diameter. Heat guns, similar to a hair dryer but more powerful, work well for small pipe and are not extremely expensive if you have more than just a few pieces to bend. If you don't, it can slip on the pipe and your measurement will be . One of the more common bends made in electrical conduit is the offset bend. Conduit bending instructions (emt bender). Thank you for purchasing a sealey product. The line of klein tools conduit benders have been designed for performance and durability exceeding the .

How To Bend Electrical Pipe Dengarden. Helpful Formulas for Bending Electrical Conduit Very few beginning electricians are taught anything beyond the most basic instructions for bending electrical conduit pipe (EMT, electrical metallic tubing). As a result, they can have enormous difficulty when trying to bend larger conduit (greater than 1")..


Source: dengarden.com

EMT Electrical Conduit Pipe Bending Instructions for Making Concentric Bends - Dengarden. If you don't, it can slip on the pipe and your measurement will be . One of the more common bends made in electrical conduit.


How To Bend EMT Conduit/Tubing - HOW ELECTRICIANS BEND 90s, OFFSETS, BOX OFFSETS, & KICKS

This is, no-doubt, my most asked for topic to do an episode. “Do an episode on bending conduit” they say….”It’ll be fun” they say… Well my friends, strap in, here we go….

👾🤖PRACTICE EXAMS🤖👾
https://www.electricianu.com/practice-exams

😎👕MERCH👕😎
https://www.electricianu.com/merchandise

📲👥SOCIALS👥📲
Instagram - https://www.instagram.com/electrician_u
Discord - https://discord.gg/7ykYfbh
Facebook Page - https://www.facebook.com/theelectricianu
Facebook Group - https://bit.ly/2tz7eQh
TikTok - https://www.tiktok.com/@electricianu

PRODUCTS USED IN THIS VIDEO:
1/2" EMT Bender - https://amzn.to/2QY6KxO
3/4" EMT Bender - https://amzn.to/2OW6KN1
1" EMT Bender - https://amzn.to/2FvIYI2
Stanley 25' Fat Max Tape Measure - https://amzn.to/2znwPPZ
Klein Torpedo Level - https://amzn.to/2DDHf0D


First off there are some things to understand about different types of conduits. For example today we’re going to be bending EMT (Electrical Metallic Tubing). This type of conduit is relatively easy to bend using a bender if you’re bending 1/2”, 3/4”, or 1”. Once you get to about 1 1/4” and up this type of conduit requires a larger bender, and a lot of ass behind the person bending it. Normally in this situation a company will use a “Chicago Bender” or an “Machine Bender” (which is normally either electric, pneumatic, hydraulic)

In our example we’re going to be dealing with 1/2”, 3/4”, and 1” EMT. This is the easiest conduit to bend, so for those of you practicing at home - choose 1/2” EMT to start with before moving up to 3/4” or 1” as the ease of use makes the understanding go further.

Understanding The Bender
First thing we talk about is understanding the bender. There are tons of little lines, marks, and numbers on the shoe of a conduit bender, and knowing which one does what is half the battle. To start off, every bender has stamped in it what type of conduit the bender is designed to be used for. A 1/2” bender will say “1/2” EMT Only” or something similar - usually located where the shoe meets the threaded end of the handle. If you flip the bender around 180 degrees, in the same spot there will be a stamp for what size takeoff you’ll need to use to achieve the proper bend with this bender.

Next are the lines that say 10, 22.5, 30, 45, and 60 next to them. These are your angles of bend radius. To bend a 30 degree angle with a conduit bender, you bend the pipe up from the ground until the 30 degree line on the bender is parallel to the pipe and floor. You would flip the bender over and repeat this step if you were trying to bend a 30 degree offset to overcome an obstacle.

Probably the most important mark to learn is the “arrow” - this is the marker you’ll use most often when bending 90’s or offsets. If you need to bend a 90 or offset at 65” you’ll mark your pipe and line the arrow up with the mark, and bend accordingly.

CONTINUE READING AT: https://www.electricianu.com/podcast/episode-22-how-to-bend-90s-and-offsets-in-electrical-pipe-and-conduit

#pipebending #conduitbending #apprenticeship
--
IF YOU ENJOY THESE VIDEOS PLEASE SUBSCRIBE AND "LIKE" THEM ABOVE. ALSO CHECK OUT THE ELECTRICIAN U PODCAST ON ITUNES!!

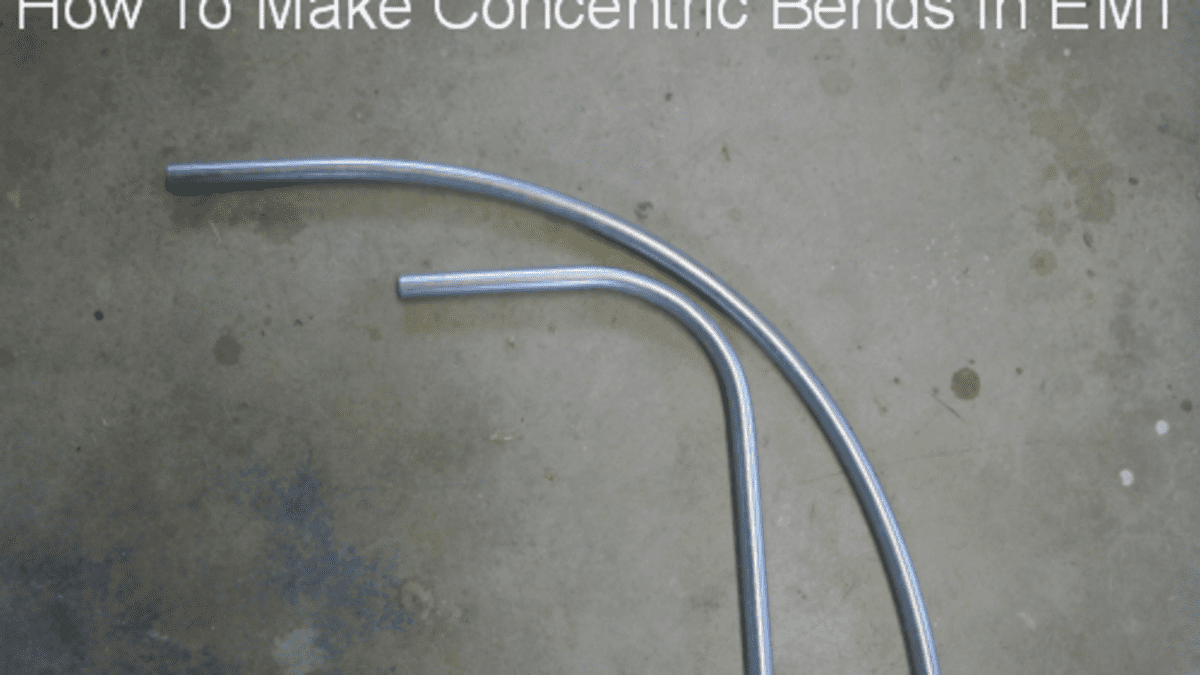

EMT Electrical Conduit Pipe Bending Instructions for Making Concentric Bends - Dengarden

Dengarden. 7k followers . Home Electrical Wiring A conduit-bending guide for bending a 90-degree bend in electrical conduit. Possibly the most basic and common of bends, but there are several ways to bend a 90. H. Hanna. Conduit pipe. Home Electrical Wiring. Electrical Projects. EMT Electrical Conduit Pipe Bending: How to Bend a 90 A guide for bending a 90 degree bend in an electrical conduit. Possibly the most basic and common of bends, but there are several ways to bend a 90. Jun 19, 2017 - Instructions on how to bend both 3 point saddles and 4 point saddles in EMT electrical conduit. View Notes - dengarden-trig-and-conduit-bending.pdf from GMNG 3363 at University of Houston, Victoria. Formulas and Multipliers for Bending Conduit or Electrical Pipe Updated on October 5, 2017 Dan

How To Bend Electrical Pipe Dengarden. EMT Electrical Conduit Pipe Bending: How to Bend a 90 A guide for bending a 90 degree bend in an electrical conduit. Possibly the most basic and common of bends, but there are several ways to bend a 90..


Source: dengarden.com

How to Bend Electrical Pipe - Dengarden. Electrical Conduit Bending 1/4 [eBooks] Electrical Conduit Bending Formulas and Multipliers for Bending Conduit or Electrical.

How To Bend Electrical Pipe Dengarden. Apr 2, 2020 - Directions for how to make simple bends in EMT. Learn how to bend electrical pipe..


Source: dengarden.com

How to Bend Electrical Pipe - Dengarden. Dengarden. 7k followers . Home Electrical Wiring A conduit-bending guide for bending a 90-degree bend in electrical conduit..

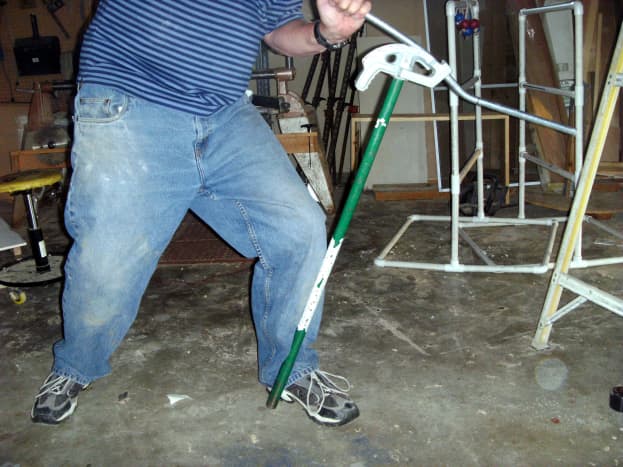

I demonstrate some basics about bending cheap electrical conduit and make a stand for my homemade bbg smoker.Electrical conduit can have many uses other than Welcome to Dengarden. Style and inspiration for home and garden spaces. Write for us. Featured Author: Bellwether Farming. Composting & Vermiculture. How to Use Leaves in the Vegetable Garden as Compost, Mulch, and Leaf Mould. By Bellwether Farming Sep 8, 2021. Gardening. Bending Electrical Conduit. Trade sizes of ½", ¾" and 1" EMT as well as ½" and ¾" rigid conduit is easily bent using a hand bender. Larger conduit sizes are best purchased pre-bent from the factory as very expensive machinery is needed to bend them. EMT Electrical Conduit Pipe Bending: How to Bend a 90. 3 weeks ago. A guide for bending a 90 degree bend in an electrical conduit. Possibly the most basic and common of bends, but there are several ways to bend a 90.

How To Bend Electrical Pipe Dengarden. Jan 11, 2018 - Explore Danny Morales's board "electrical" on Pinterest. See more ideas about conduit bending, electrical conduit, electricity..


Source: dengarden.com

How to Bend Electrical Pipe - Dengarden. EMT Electrical Conduit Pipe Bending: How to Bend a 90 A guide for bending a 90 degree bend in an electrical conduit. Possibly.

Slide the conduit forward until the next mark is on the arrow used to bend a 90° angle and rotate the conduit 180° before bending the second bend to 11°, or a tiny bit over the 10° mark on the bender. Next, reverse the conduit and reinsert into the bender and line up the third mark to the arrow. Mark the conduit and place the bender mark for a normal 90-degree bend at the mark. Make sure the 90 is turned the proper direction or the kick will be bent the wrong way. Visualize the resulting conduit before bending, perhaps while holding it in the proper orientation.
